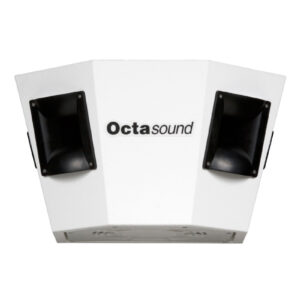

SP520A – 10 Inch
Introducing the Rugged, Full Coverage, Built to Last – SP520a
Up to 10,000 Square Feet sound coverage
Impact Resistant Rugged Polyurethane Elastomer Finish
Pucks, Basketballs, Lacrosse Balls, Projectiles – No Problem!
8 Suspension Points – Ready to Hang right out of the box
High Humidity Moisture Resistant Low Temperature Design
Long Lasting Performance and extremely durable components
2 High Compression Horn Drivers, 1 Sub-Woofer 10″
Manufactured in North America using Eminence components
“The Octasound Speaker systems have lasted 30 plus years in hockey rinks”
- PRODUCT DOCUMENTS
- SPECIFICATIONS
Technical Specifications | Auxiliary Input | ||
Frequency Response: | 45 Hz to 20 kHz | Temperature Range: | -20ºC to 55ºC (-4ºF to 131ºF) |
Sensitivy: | 104 dB/watt/meter | Humidity Range: | 0% to 100% Non Condensing |

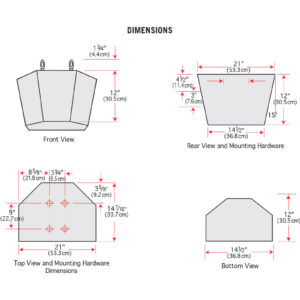

Power Handling: | 200 Watts RMS / 8 Ohm Impedance | Dimensions: | 12″ (30.5 cm) H x 21″ (53.3 cm) L x 14.5 (33.7 cm) W |
Impedance: | 8 Ohms Nominal | Weight: | 40 lbs (18.4 kg) |
Coverage: | 180° H x 120° V – 10,000 sq ft. | Material: | Moisture Proof MDF – Polyurethane Elastomer finish. |
Maximum S.P.L.: | 126 dB RMS / 129 dB Peak at 1 meter | Mounting Hardware: | Eight 1½” Custom Eye Nuts, ¼ x 20 Thread. |
Shipping Weight: | 45 lbs (20.45 kg) | ||
Shipping Dimensions: | 26” (66 cm) L , x ” 20 (50.8 cm) W x 20″ (50.8 cm )high |
