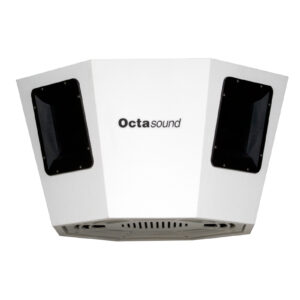

SP860A – 18 Inch
Introducing the Rugged, Full Coverage, Built to Last – SP860A
Up to 35,000 Square Feet sound coverage
Impact Resistant Rugged Polyurethane Elastomer Finish
Pucks, Basketballs, Lacrosse Balls, Projectiles – No Problem!
4 Suspension Points – Ready to Hang right out of the box
High Humidity Moisture Resistant Low Temperature Design
Long Lasting Performance and extremely durable components
4 High Compression Horn Drivers, 1 Sub-Woofer 18″
Manufactured in North America using Eminence components
“The Octasound Speaker systems have lasted 30 plus years in hockey rinks”
- PRODUCT DOCUMENTS
- SPECIFICATIONS
Technical Specifications | Auxiliary Input | ||
Frequency Response: | 50 Hz to 20 kHz | Temperature Range: | -20ºC to 55ºC (-4ºF to 131ºF) |
Sensitivy: | 106 dB/watt/meter | Humidity Range: | 0% to 100% Non Condensing |

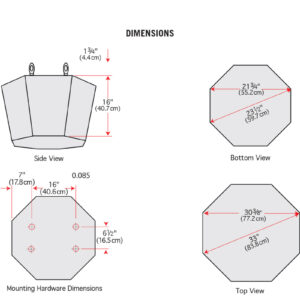

Power Handling: | 300 Watts RMS / 8 Ohm Impedance | Dimensions: | 16″ High, 30.5 Inch’s Wide at Top |
Impedance: | 8 Ohms Nominal | Weight: | 110 lbs (50 kg) |
Coverage: | 360° H x 180° V – 35,000 sq ft (140 x 250 ft.) approx. | Material: | Moisture resistant MDF – Polyurethane Elastomer finish. |
Maximum S.P.L.: | 130 dB RMS / 133 dB Peak at 1 meter | Mounting Hardware: | Four 1½” Custom Eye Nuts, ¼ x 20 Thread. |
Shipping Weight: | 145 lbs (65.8 kg) | ||
Shipping Dimensions: | 40” (101.6cm) Square, by 24” (61cm) high |
