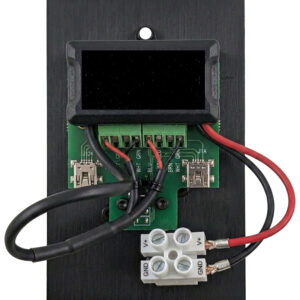

RUSBX2™ – Low Voltage USB Data and Charging Plate
Dual USB 2.0 Amp Charging and Data Adapter
2 x Type A to Type B cables

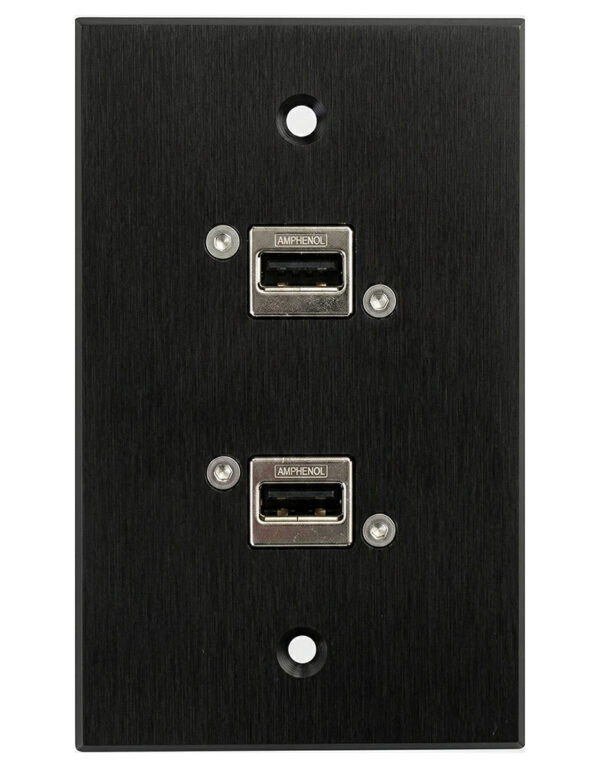

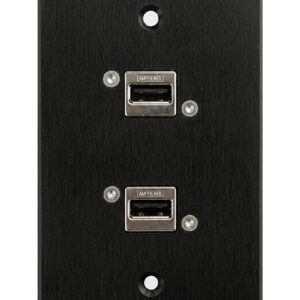

Anodized Aluminum Wall Plate with 2 x Type A Commercial USB ports.
Accepts inputs from and provides power to RAMX2 and RABX2 mixers
Low Votlage Contractor Installation
Balanced or unbalanced inputs
Mute circuit – normally open
Forward Compatible with charging technologies
Installs in a standard outlet or electrical switch box
Highest quality components throughout
Install Locally at rack location or up to 1000 Ft for Charging and Data Transmission

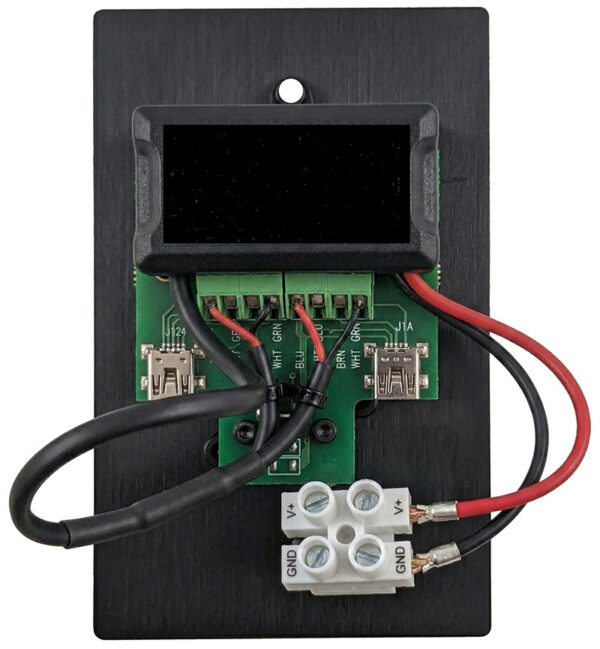

Easy to install – Terminals are marked with cable color.
Weather Resistant Design
- PRODUCT DOCUMENTS
Introducing the RUSBX2 remote audio selector from Octasound.
Rugged and Simple! -The RUSBX2 is a low voltage USB charging and data plate. It can be installed locally in a rack using our RP-6 rack plate or installed up to 1000ft. away from the equipment rack using CAT5 wire. It’s a single gang plate that fits into a standard single gang box
Low Voltage Design
The RUSBX2 does not require an electrician for installation.
USB 2.0 is today’s standard but what will the new charging standard be in the future? Since the RUSBX2 relies on standard wall chargers you can upgrade the charging standard by replacing the wall plug.
Aluminum Black Anodized Panel
The black aluminum anodized panels will withstand vandalism and are superior to similar plastic controls which break easily. The engraved panel will ensure the channel markings can never be altered or removed.
|Power Output:||30 Watts / Channel @ 8 Ohms
50 Watts / Channel @ 4 Ohms
|Dimensions:||4.5″H x 2.75W x 1.4″D|
|Frequency Response:||20 Hz to 20 k Hz||Input Connector:||Terminal Block|
|Maximum Input Levels:||.5 Vrms||Output Connector:||Euroa Style Terminal Block – 2 x Orange|
|Power In Connector:||Euro Style Terminal Block – 1 x Black|
|THD+N:||.1% (VCC = 21V f=1 kHz, PO = 25W)||Power Required:||Local power via AC/DC adapter 15 to 24 Vdc. 1 to 5 amps.|
|Signal To Noise:||-102 dB (Max output at THD+N < 1%, f = 1kHz, Gain = 20 dB)||Aux Power Connector:||Terminal Block|
|Crosstalk:||-100 dB (VO = 1 Crms, Gain = 20dB, f = 1 kHz)||Mute Connector:||Terminal Block|
|Gain:||17 dB (150 mv to 1.0 v)|
|Aux power out:||15Vdc / 1 Amp|
|Input Sensitivity:||30.5 dB|
|Tone Controls:||Bass and Treble +/- 14dB|
