RAVC1™ – Remote Audio Volume Control Single Channel
Volume control any line level balanced or stereo audio signal.
Use for in zone volume control adjustments.
Use for wireless microphones, televisions, background music etc.
Mounts anywhere in the room / zone

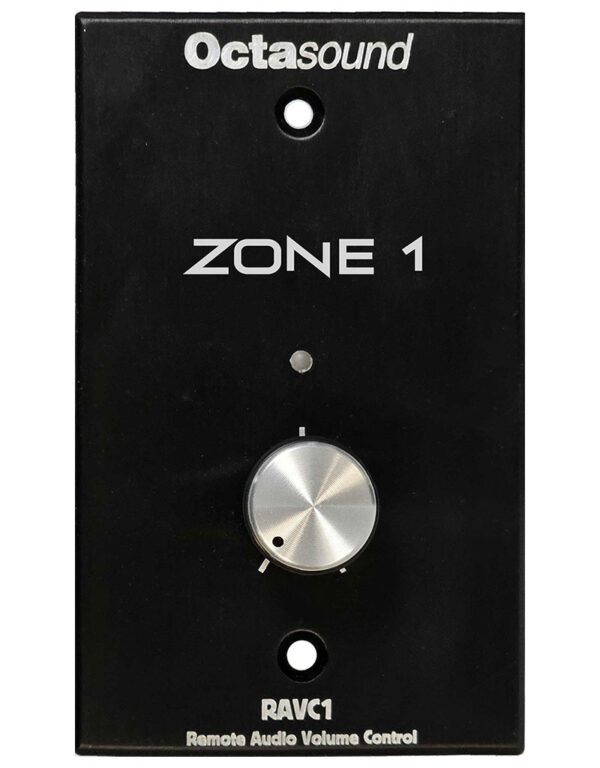

Custom engraved aluminum panel
Ultra low noise, Interference resistant, SMT-based design
Wall plate installs in a standard outlet or electrical switch box

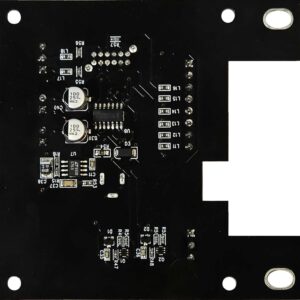

Main board easily mounts using rear rack tabs for convenient wiring
Sealed volume controls with conductive plastic. Will not oxidize or corrode
Highest quality components throughout
Intuitive simple to use interface.
Power indicator LED – Main Board and Wall Plate
CAT 5 or shielded audio cable based installation

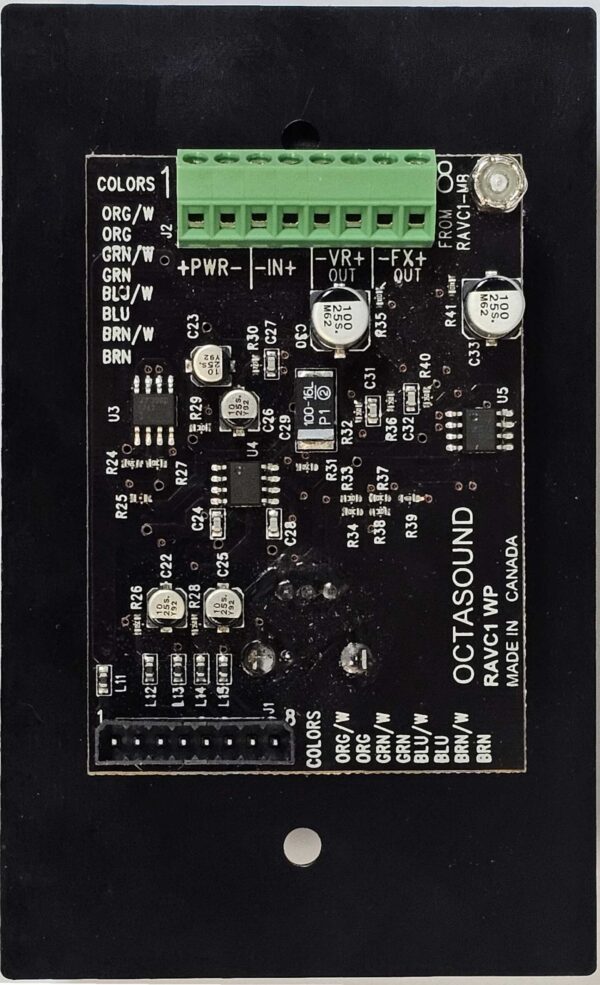

Easy to install Terminal block with color codes on PC board for CAT5.
Solid aluminum plate with etched markings will not fade or wear off
Daisy Chain VIA CAT5 to existing Octasound Remote Audio Products (RAMX2, RABX2)
Weather resistant design
- Description
- PRODUCT DOCUMENTS
- SPECIFICATIONS
Description
Toughest Built Electronics In the Industry.
KDM models have lasted 20 plus years in the field. They are built tough for the installation environment to provide years of service. We use solid metal plates and anodized markings that never wear off. The volume controls use conductive plastic and are sealed from outside elements. They will never oxidize and cause issues with sound quality.
Technology without custom software / programming!
The product never expires. KDM does not use any software or require product specific installation / operational training classes. When you buy KDM products you actually own it, not the installer or manufacturer.
Easy to operate, easy to install.
No operating manual is required. Simply turn the volume up and down and adjust the source volume! Zone control, TV’s, Projectors wireless microphones and more can have a mounted volume control in a convenient location.
Zone control is ideal where distributed audio (70V) power requirements exceed industry 70V Volume control power specifications. Installation requires a screwdriver and wire strippers.
Install them anywhere and add on at anytime.
The Octasound RAVC1 can be placed anywhere in a facility and fits into a standard single gang electrical box. It’s unique daisy chain ability allows the RAMX2™ and the RABX2™ to be wired together with a single CAT5 wire.
Hearing assist Ready
An additional constant level output provides a means to supply the RAVC1 audio to a separate Zone or Hearing assist system. When the RAVC1™ volume is adjusted it will not adjust the other zone / hearing assist system.
| Technical Specifications | General | ||
| Input Impedance | Greater than 10k Ohm | Dimensions: | Main Board – 2.75” L H x 2.8 H |
| Output Impedance | Designed to operate into 600 ohm balanced or unbalanced | Wall Plate – 2.75W“ x 4.5” H x 1.75 T (Board depth 1” below plate) | |
| Temperature Range | -20 °C to 55 °C | Input Connectors: | Terminal Block |
| Gain | Balanced: 17dB (150mv to 1.0V) Variable and Fixed outputs. Unbalanced (L + R): 23dB (75mV to 1.0V) |
Output Connectors: | Terminal Block |
| Signal To Noise: | -102 dB (Max output at THD+N < 1%, f = 1kHz, Gain = 20 dB) | Power Required: | Local power via AC/DC adapter. 15V 800 ma (Included) |
| Response: | ± 1 dB 40 Hz to 15 kHz | Power Connector: | Power Barrel Connector 2.1X5.5MM) |
| Noise: | Greater than 75 dB S/N | Terminal Block | |
| Distortion: | Less than 0.3% at 1.0 volt output. | Daisy Connector: | Strip and insert type connector. |
