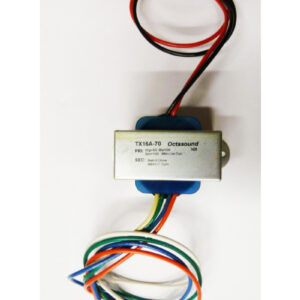

TX16A – 16W / 70V Speaker Transformer

High Quality Sound

The Octasound TX16A-70 audio distribution transformers are designed for the speaker side of a voltage speaker distribution system.

Continuous Use Design

Each unit is designed to operate continuously.

Primary (Input)

The input is designed for a 70V speaker distribution line. 25V, 100V and 140V models available upon request.

Secondary (Output)

The output is designed for a 8 Ohms speaker.

Magnet Wire

All units are wound with the finest virgin copper magnet wire. All windings use heavy insulated wire to provide excellent manufacturing yield, lower customer cost and superior life.

The Core

Octasound transformers use the finest M6 line grain oriented steel cores. Each unit is hand stacked to assure at least 92% stack.

Termination

15 inch Wire leads.
Primary: Red – 8 Ohms, Black – V.C. Common
Secondary: Green – 16 Watts, Blue – 8 Watts, Orange – 4 Watts, White – Line Common

Mounting

This unit comes with zinc plated channel/frame for mounting with the use of two screws.
