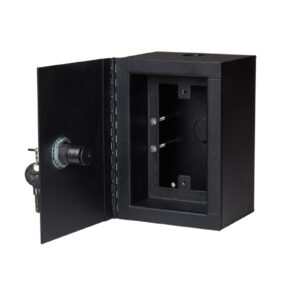

Surface mount low voltage case with locking door.

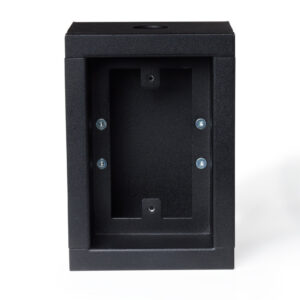

Surface mount single gang low voltage case - no door.
SMLV Assembly
SMLV insert with no door.
Surface mount low voltage case with locking door.
Surface mount single gang low voltage case - no door.
SMLV Assembly
SMLV insert with no door.

SMLV-1 Surface Mount Low Voltage Case – Single Gang

FEATURES

  • Provides 1.35” of recess for low voltage devices
  • Protects low voltage devices/controllers from impacts
  • Invisible mounting hardware

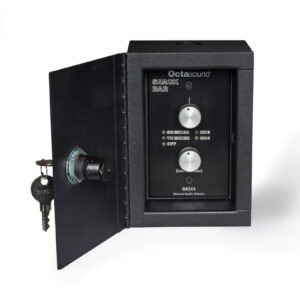

  • Secure optional lockable door (SMLV-1-LD) – Flush mountable with added FA-1 flange adapter
  • 3 Knockouts for 1/2” Conduit (Top, Bottom, and Back)
  • Compatible with RAMX2, RABX2, RAAX2,  RUSB2 Octasound Module
  • Four rear mounting holes, mounting screws not included
  • 11 gauge steel, black powder epoxy finish
  • Table top ofr Wall mount.

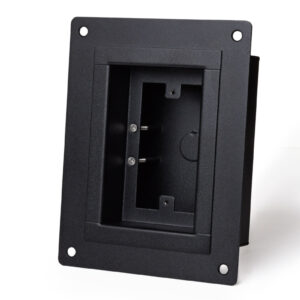

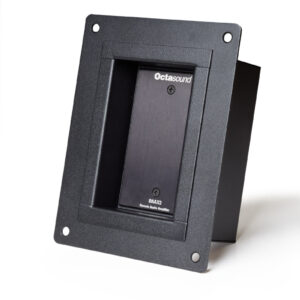

  • Recess mounting optional with added FA-1 Flange
  • 4″W x 5.75″H x 3.15″D

ORDERING INFO

SMLV-1 Kit Includes recessed single gang shroud and back box.

SMLV-1-LD Add locking door.

FA-1 Single gang flange adapter to convert to flush mount configuration.
