Surface mount dual gang low voltage case - no door.

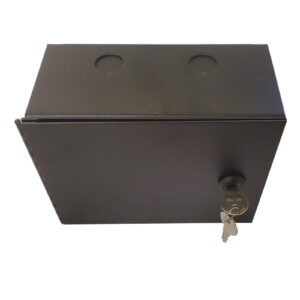

Surface mount dual gang low voltage case - with locking door. Top View

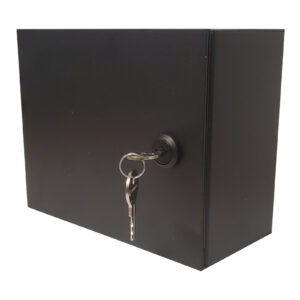

Surface mount dual gang low voltage case - with locking door. Side View

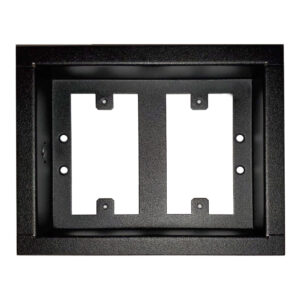

Dual gang insert with no door. Front View.

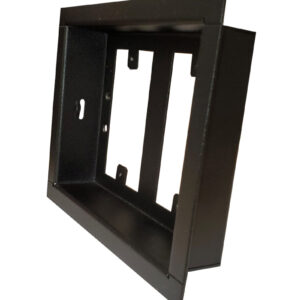

Dual gang insert with no door. Side view.
smlv_2_no_door
smlv_2_door_top_view
smlv_2_door_side_view

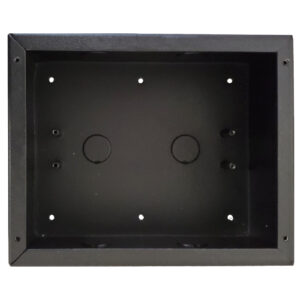

smlv_2_back_box
smlv_2_insert_no_door
smlv_2_insert_no_door_side_view

SMLV-2 Surface Mount Low Voltage Case – Dual Gang

FEATURES

  • Provides 1.35” of recess for low voltage devices
  • Protects low voltage devices/controllers from impacts
  • Invisible mounting hardware
  • Secure optional lockable door (SMLV-2-LD)
  • 6 Knockouts for 1/2” Conduit (2 Top,2 Bottom, and 2 Back)
  • Compatible with RAMX2, RABX2, RAAX2,  RUSB2 Octasound Module
  • Four rear mounting holes, mounting screws not included
  • 16 gauge steel, black powder epoxy finish
  • Table top or wall mount
  • Recess / flush mounting optional with added FA-2 Flange Adapter
  • 7″W x 5.75″H x 3.25″D

ORDERING INFO

SMLV-2 Kit Includes recessed single gang shroud and back box.

SMLV-2-LD Add locking door.

FA-2 Single gang flange adapter to convert to flush mount configuration.
